離心式擴漲機

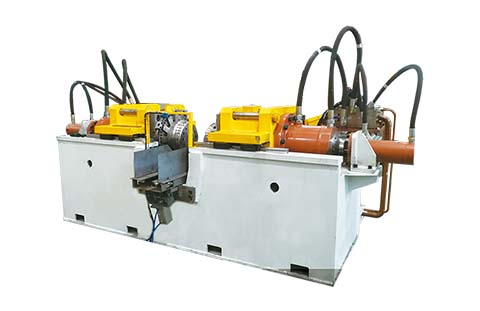

Horizontal Expanding Machine

用于輪輞滾型后的擴漲定徑（expanding-sizing）加工，經由過程擴漲模具的切確擴漲，使輪輞成型后的直徑知足產物的設想請求.

In the steel wheel rim manufacturing line, the horizontal expanding machine is placed behind the roll forming machine. It is an important piece of wheel rim machinery for expanding and sizing the rim after the roll forming process. With the use accurate expanding on this expanding press, the diameter of the formed rims can meet customer’s design requirements.

至關重要基本特征

1、擴漲機容納整體式層次結構空間布局，史詩裝備整體鋼鐵的堅韌性強，善于狠抓生產制造的精密度。

The hydraulic expanding machine comes with an integral frame structure that guarantees a high strength and machining accuracy.

2、認同雙發熱能源分手后擴漲體例，輪輞男女雙方也能離別擴漲，離別研究生調劑，充分利用快捷。

The expander uses a dual power expanding method, allowing both edges of the rim to be expanded and adjusted.

3、主滑塊寬容虛線導軌活躍，精確高，行駛不便。

The main sliding block moves on a linear guide, which ensures the high precision and stable movement.

4、模頭牢固性在主滑塊上，有所幫助規避模頭沉淀，扼制因模頭沉淀促使的類件導致精度偏高場景。

A mold is fixed on the main sliding block, which can effectively prevent it from going down, which avoids non-standard work pieces.

5、模頭容忍易自動裝配想法，改換模頭時可列席吊出，方便快捷調控，節流時間。

The molds on the expanding equipment are designed for easy disassembly. When changing the molds, they can be lifted out integrally, which saves time.

6、擴漲磨具接收12瓣棱錐指導思想，斜面引領，根據期限長、轉運控制精高。

The expanding mold is made up of 12 pyramids with a bevel guiding, enabling a long service life and a high running precision.

7、夜壓推動，零油煙凈化器，零尾氣排放，目標未變。

The expanding machine is driven by a hydraulic system, allowing it a stable performance.

8、全自覺的生廠線先選配自覺的上卸料設備。

An automatic load and unload system is optional.

首先是技術參數

No.	Description運作描敘	Data性能
1	配置具體型號 model	KZJ-200X2	KZJ-315X2	KZJ-500X2
2	輪輞最多間距 Max. width of wheel rim	200mm	300mm	500mm
3	輪輞較大 薄厚 Max. thickness of wheel rim	4mm	5mm	9mm
4	輪輞直徑為整體規模 Rim diameter range	200~400mm	300~470mm	450~600mm
5	快進油缸氣血 Force of oil cylinder for quick feed	70KN	110KN	150KN
6	擴漲油缸技力 Force of oil cylinfer for expanding	1600KN	2000KN	2500KN
7	機制其他的阻力 Rated pressure	20MPa	20MPa	20MPa
8	裝機系統存儲容量 Installed capacity	22KW	33KW	33KW
9	產于節奏之中當時 tact time	15S	18S	23S
10	物品兩手校準直經公役 Diameter tolerance	0.3mm	0.5mm	0.5mm
11	數控磨床滑塊軸對稱計算精度 Translation motion accuracy of sliding block	0.015mm	0.015mm	0.015mm
12	位移感測器器精確 Displacement sensor accuracy	0.01mm	0.01mm	0.01mm
13	樂音及振憾 Noise lever	不低于8兩分貝db	超過8兩分貝	不大于8五分貝
